Measuring network quality - Basic course

Learn to interpret signals accurately and avoid costly mistakes. This course is a first step towards a full understanding of measuring and analysing network performance. It teaches basic principles of energy measurement and network quality monitoring.
Dni nie są zaplanowane dla tego kursu
Jesteś zainteresowany?

Informacje techniczne

Nazwa kursu: Measuring network quality - Basic course
Podręcznik kursu: No
Rodzaj kursu: Stacjonarny
Course duration: 1 day
Dostawca: Trainor
Trainor app

Pobierz aplikację Trainor i uzyskaj szybki dostęp do przeglądu swoich kursów, dyplomów i innych materiałów.


The course offers a basic understanding of measuring and analysing network quality. A good basic understanding is essential in order to recognise signals indicating incorrect connections and/or settings. Correct interpretation of signals can prevent costly mistakes.

Grupa docelowa

Installation managers, maintenance engineers, electrical engineers and energy consultants.

Kurs zawiera te przedmioty

Basic terms

  • (T)RMS, Crest factor, peak values, average values, frequency
  • Safety (IEC61010-1), using pliers to take current readings, connecting voltage probes
  • Nominal voltage/current, effect (KW, KVA, KVAR), (non-) linear load)

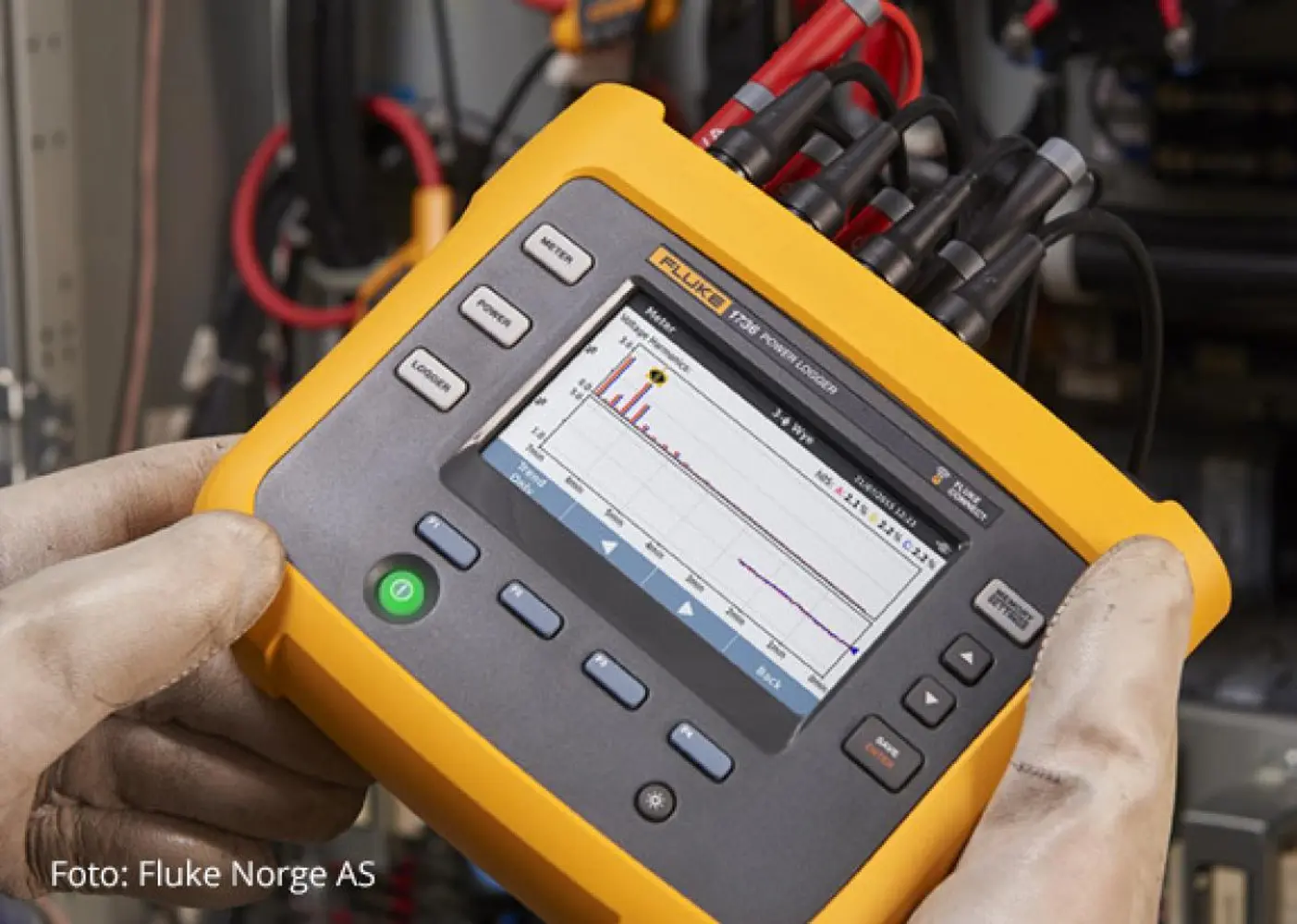

Setting up network quality measuring

  • Instrument setup (relative values, limit values, networks, phases)
  • Instrument functions (scope-metre function, calibration, instrument class)

Interpreting and systematising readings in relation to the Quality of Supply directive and EN-50160 (including limits)

  • Temporary overvoltages and undervoltages
  • Flicker
  • Harmonic voltages (including THD, TDD, %)
  • Unbalance
  • Interruptions
  • Transients
